Customized Manufacture Air Cool Water Air Heat Recuperator Exchanger

FOB Reference Price:Get Latest Price
$200.00 - $1,000.00 / Piece | 1 Piece/Pieces (Min. Order)
Model Number:
air heat exchanger
Power:
2.2-400kw
Shipping:
Support Express · Sea freight · Land freight
Lead Time:
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 1 Pieces)

More

Graphic customization (Min. Order: 1 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Food & Beverage Shops
After Warranty Service:
No service, Online support
Local Service Location:
none
Showroom Location:
none
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty of core components:
1 Year
Core Components:
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
Guangzhou Qingli
Structure:
air heat exchanger
Liquid Flow Rate:
105 M3/h
Maximum Working Pressure:
15bar
Voltage:
220V/380V
Weight:
10-300kgs
Dimension(L*W*H):
DESIGNED
Certification:
CCC, ce, UL, Other
Working Temperature Range:
Based on the model
Key Selling Points:
Competitive Price
After-sales Service Provided:
No overseas service provided
Material:
stainless steel
Type:
air heat exchanger
Application:
Heat Transfer
Product:
Heat Exchange Rediatoroil Air Compressor Oil Cooler
Product Name:
Customized Manufacture Air Cool Water Air Heat Recuperator Exchanger
Tube material:
SS304/SS316/SS316L/Carbon Steel/Cast Iron
Color:
Silver
Name:
Tube Coaxial Heat Exchanger
Fin material:
SS304/SS316/SS316L/Carbon Steel/Cast Iron
Warranty:
12 Months
Supply Ability
Supply Ability:
2000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
wooden case
Port
guangzhou
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 15 To be negotiated
Product Description

1. Heat exchanger area:5~100 m2


2. Sectional area of heat medium passing:0.0043~0.0089m2


3.Weight:50Kg~300Kg


The fin tube is made of seamless steel tube of ∮21*2.0mm with crimped carbon steel fin of 15*0.3mm. Distance between fins is 5mm(D),6mm(Z)or 8mm (X). Finned tube materials can be carbon steel tube with crimped carbon steel fin or stainless steel tube with crimped stainless steel fin. The working pressure is 2.0 Mpa, and working temperature is under 300°C. The heat medium is steam or hot water, industrial steam pressure is 0.3-8 kg / cm2, temperature of the high temperature steam is 130-170°C.

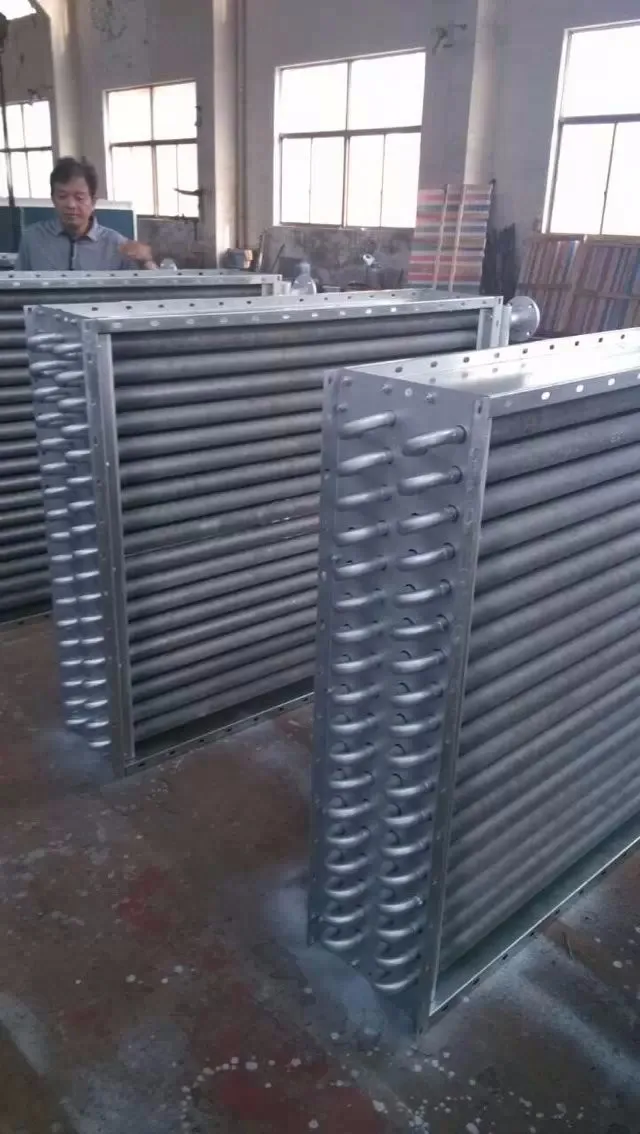

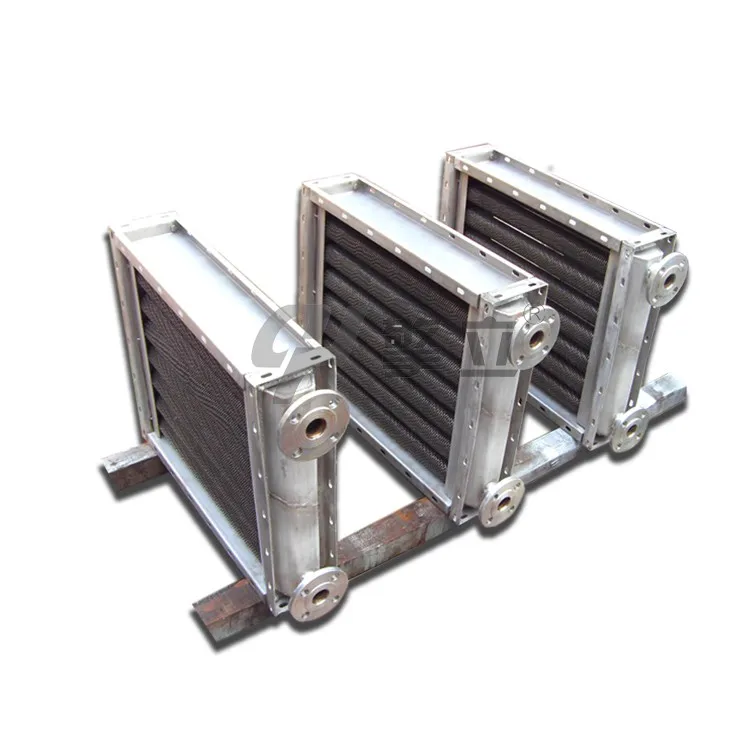

 The heat exchanger mainly consists of 3 furcal rows of spiral finned tube. The finned tube is constructed by seamless steel tube with crimped steel fin by mechanical circumambulation method. The surface is zinc plated or sprayed with high temperature aluminum paint coating. Steel tube and fin area combined together tightly with wide contact surface. This type of radiator features has good and stable heat conduction performance, corrosion resistance, nice appearance, easy installation, convenient management and durable service.


Product Name
air heat exchanger
Material
stainless steel、Carbon steel,fin tube
Grade
Fin distance D=5mm,Z=6mm,X=8mm
Brade
Guangzhou Qingli
Used
Air heating or cooling in the industries of textile printing and dyeing, such as forming, setting machine, drying machine, rotary screen printing machine and so on.

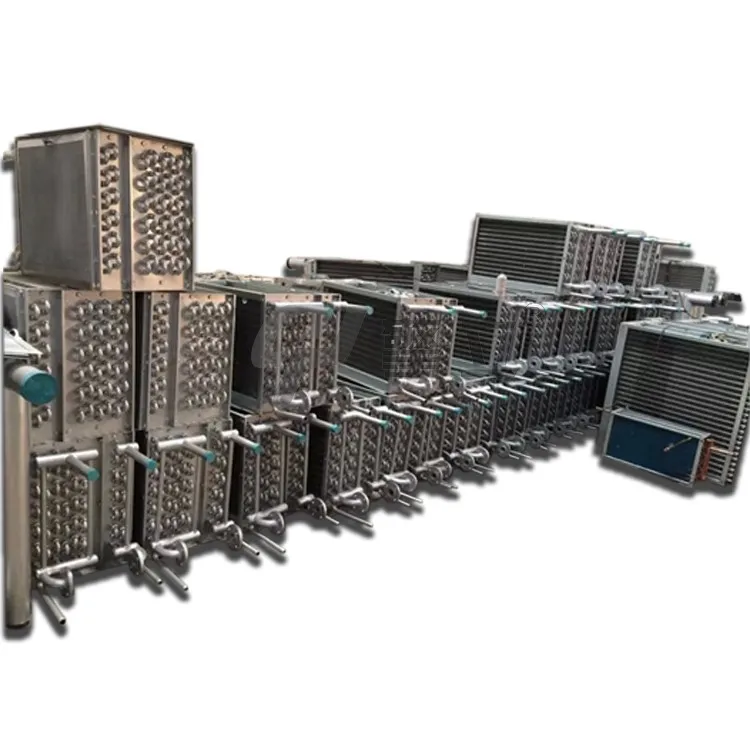

Products Show




Our Company

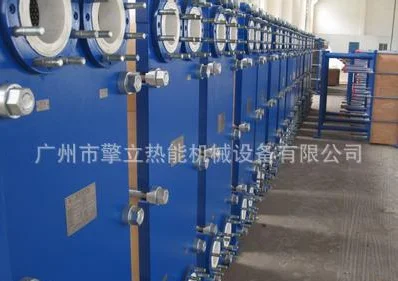

Factory

Our Factory

Workshop

Our Workshop

Warehouse

Our Warehouse

Team

Our Team

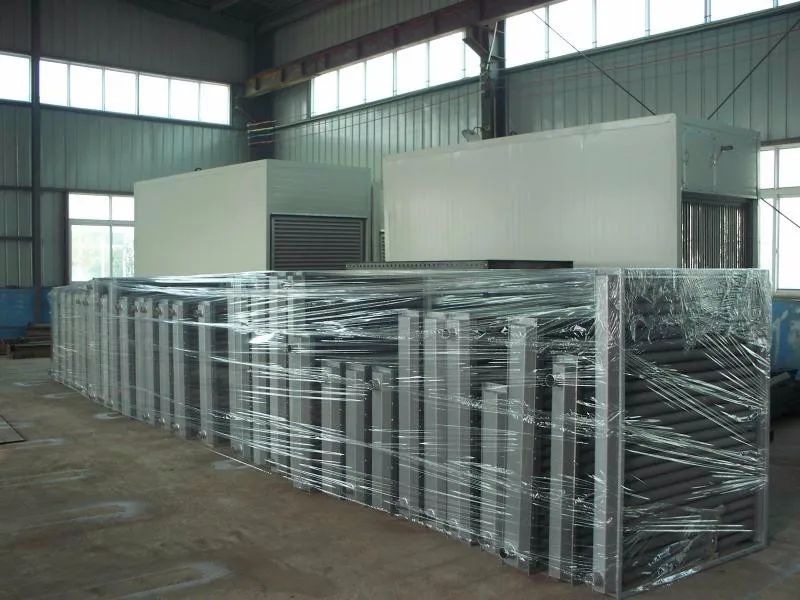

Packing & Delivery

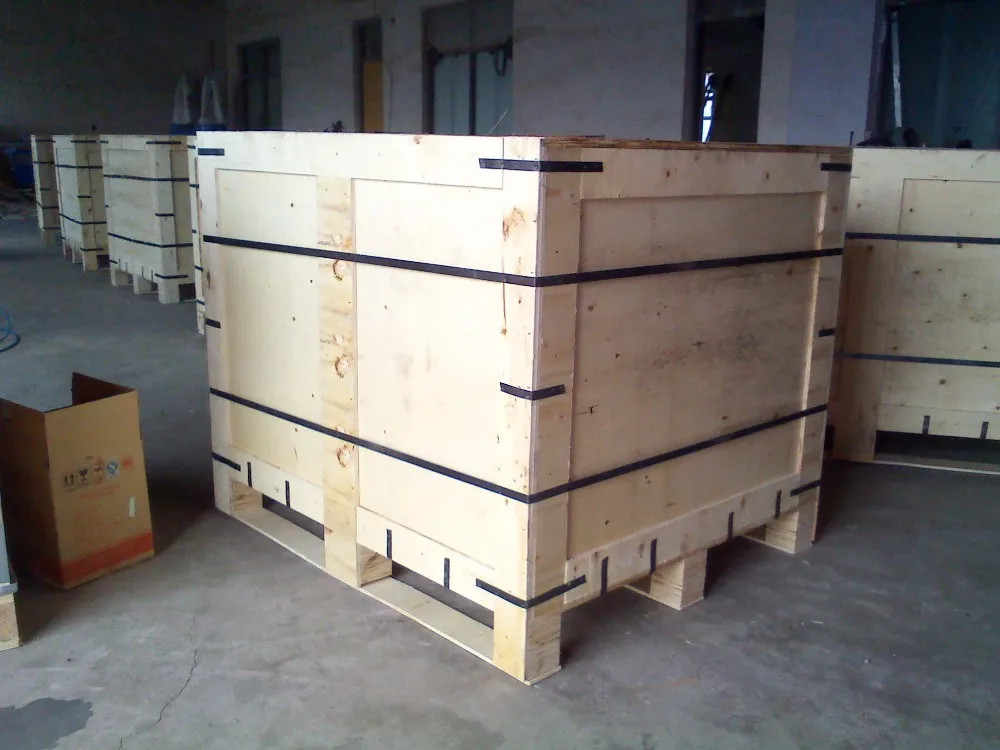

Packing Details  : wooden case

Delivery Details : 10-20 days after order of Solid bicycle tire tubes

1. Special logistics packaging

2. Suitable wooden case size

3. Shock bubble film

4. Professional placement

5. Professional shock

6. Complete package

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 10-15 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T&L/C  in advance ,balance before shippment.
